Data Center Chiller Testing with Rental Boilers

Data centers depend on reliable cooling systems to protect mission-critical infrastructure. Before a facility goes live, contractors and engineers must confirm the chiller system can handle real operating conditions.

Without proper testing, cooling failures can lead to equipment damage, downtime, and costly project delays.

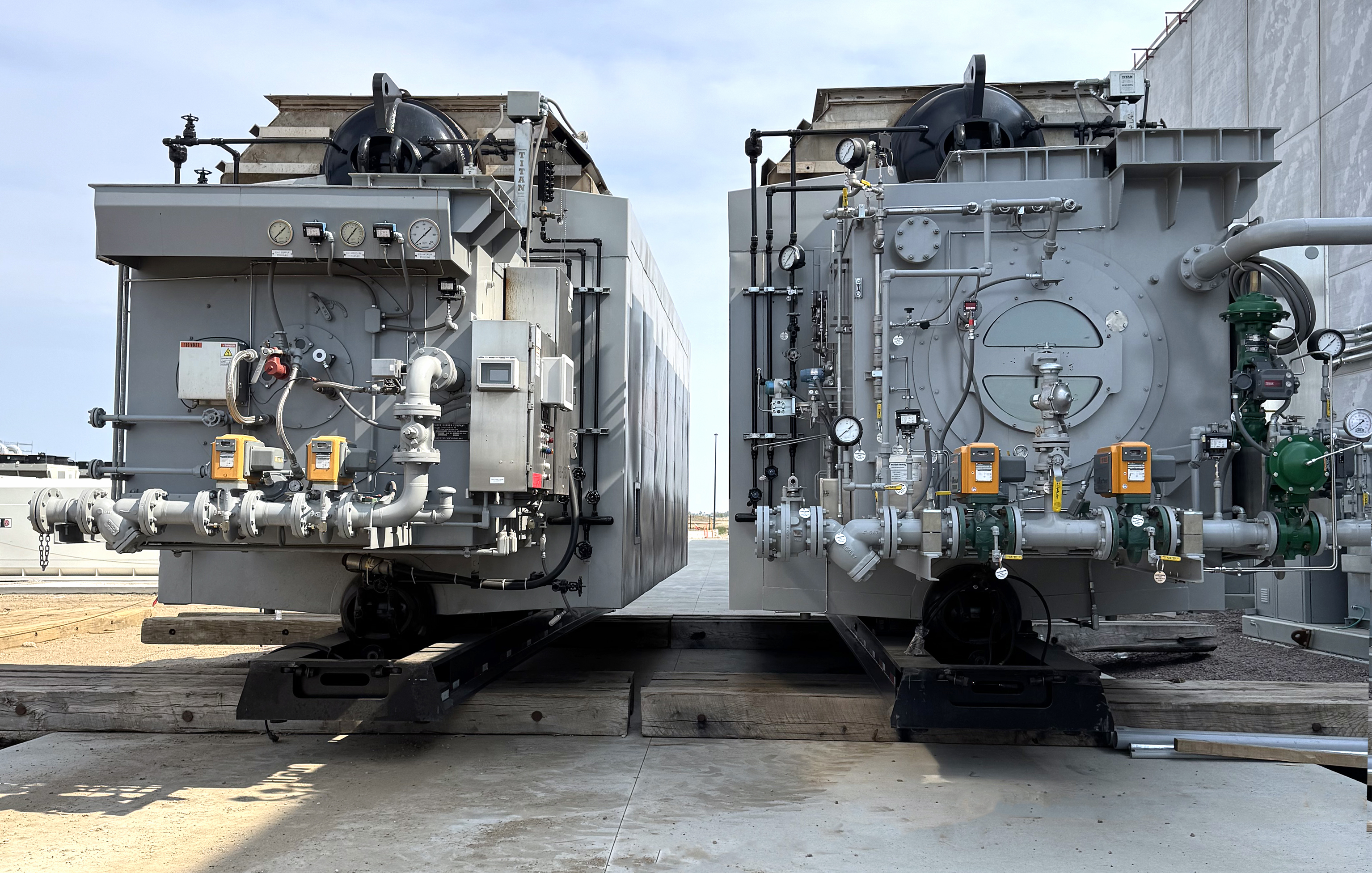

WARE provides large-scale data center chiller testing using mobile hot water rental boilers or

mobile steam rental boilers with heat exchangers to simulate real operating heat loads before commissioning.

Few companies have the equipment and experience to test entire chiller systems at scale.

WARE does.

Get a Boiler Quote

WHY DATA CENTER CHILLER TESTING MATTERS

Data centers generate enormous amounts of heat. Cooling systems must operate flawlessly to protect servers, networking equipment, and critical infrastructure.

Before commissioning a facility, engineers and contractors must verify that the entire cooling system can remove heat under real operating conditions.

Chiller testing, with WARE’s fleet of mobile rental boilers, allows teams to:

• Confirm system design and sizing
• Validate installation and piping configuration
• Detect performance issues before equipment goes live
• Protect mission-critical assets from avoidable failures

By simulating real heat loads during commissioning, testing ensures the cooling system will perform reliably once the data center becomes operational.

INDIVIDUAL CHILLER TESTING VS. FULL-SYSTEM TESTING

There are two common approaches to validating cooling performance during data center commissioning.

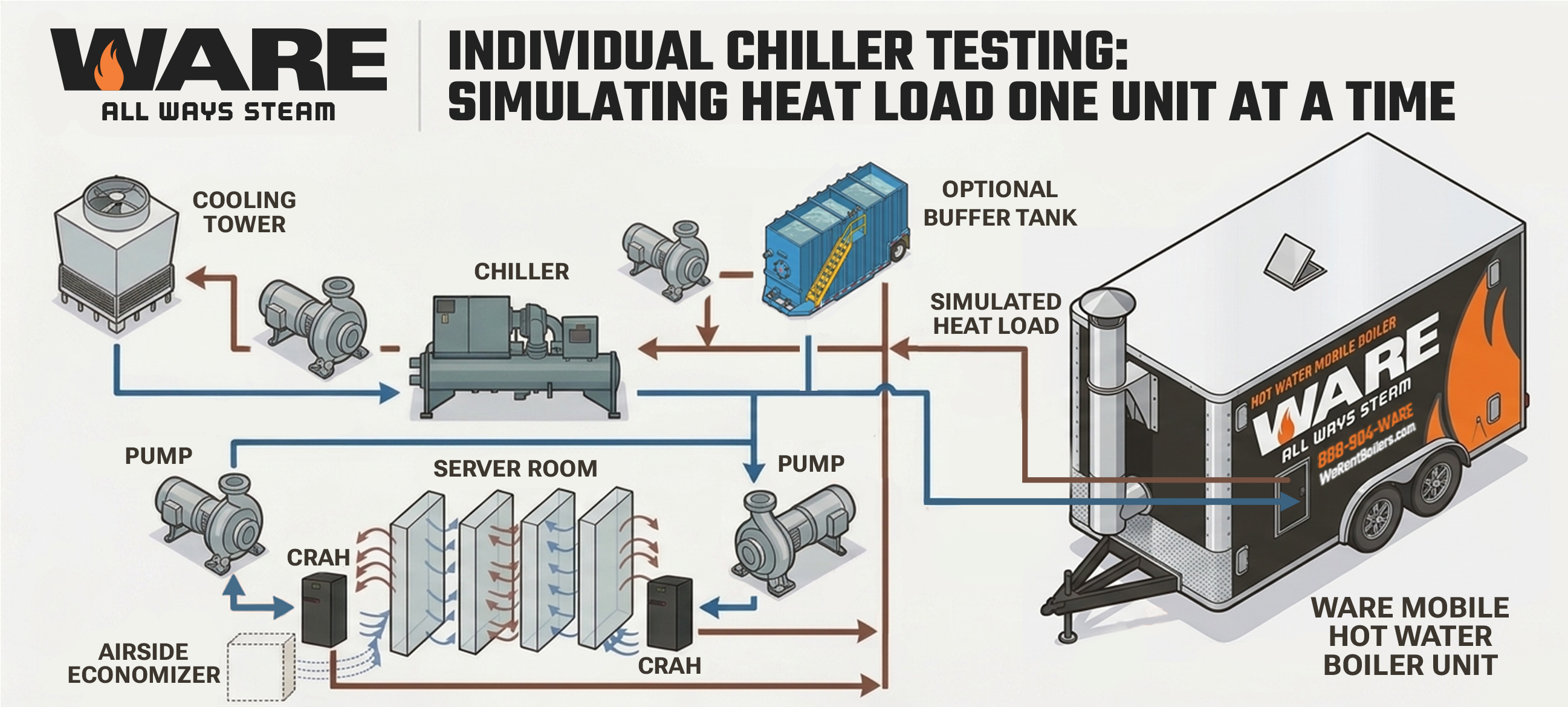

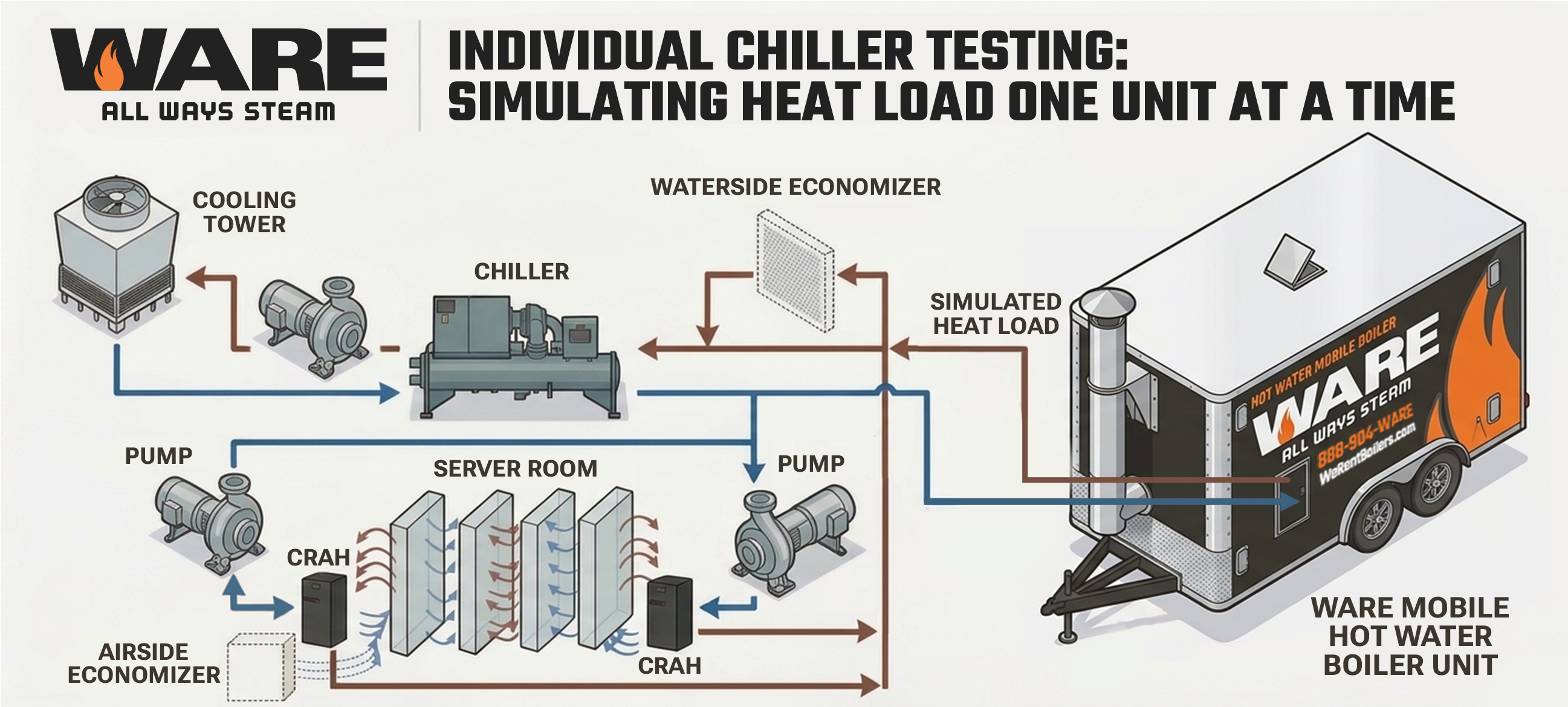

Individual Chiller Testing

Some providers test chillers one at a time to confirm basic functionality. This approach can verify that individual equipment operates correctly, but it does not simulate how the entire cooling system performs under real operating conditions.

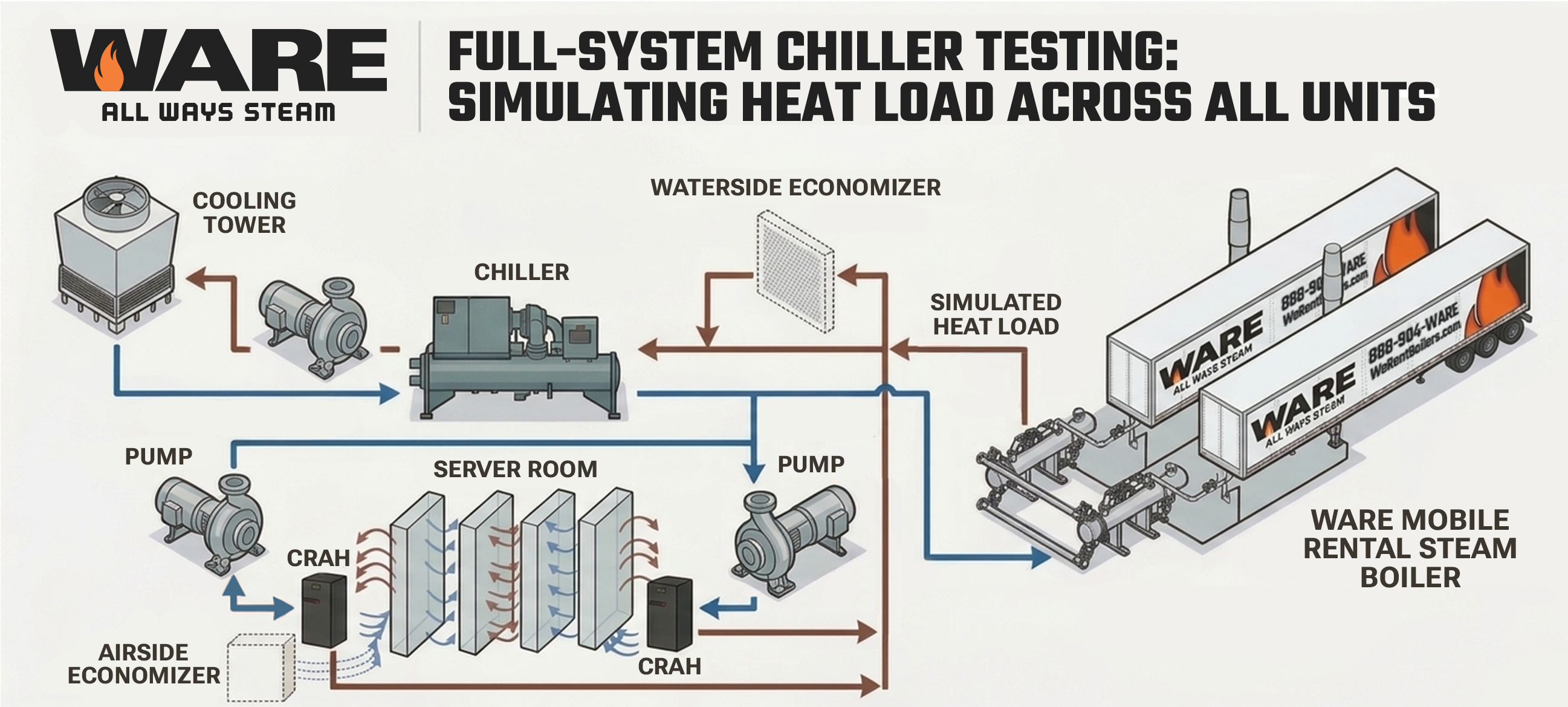

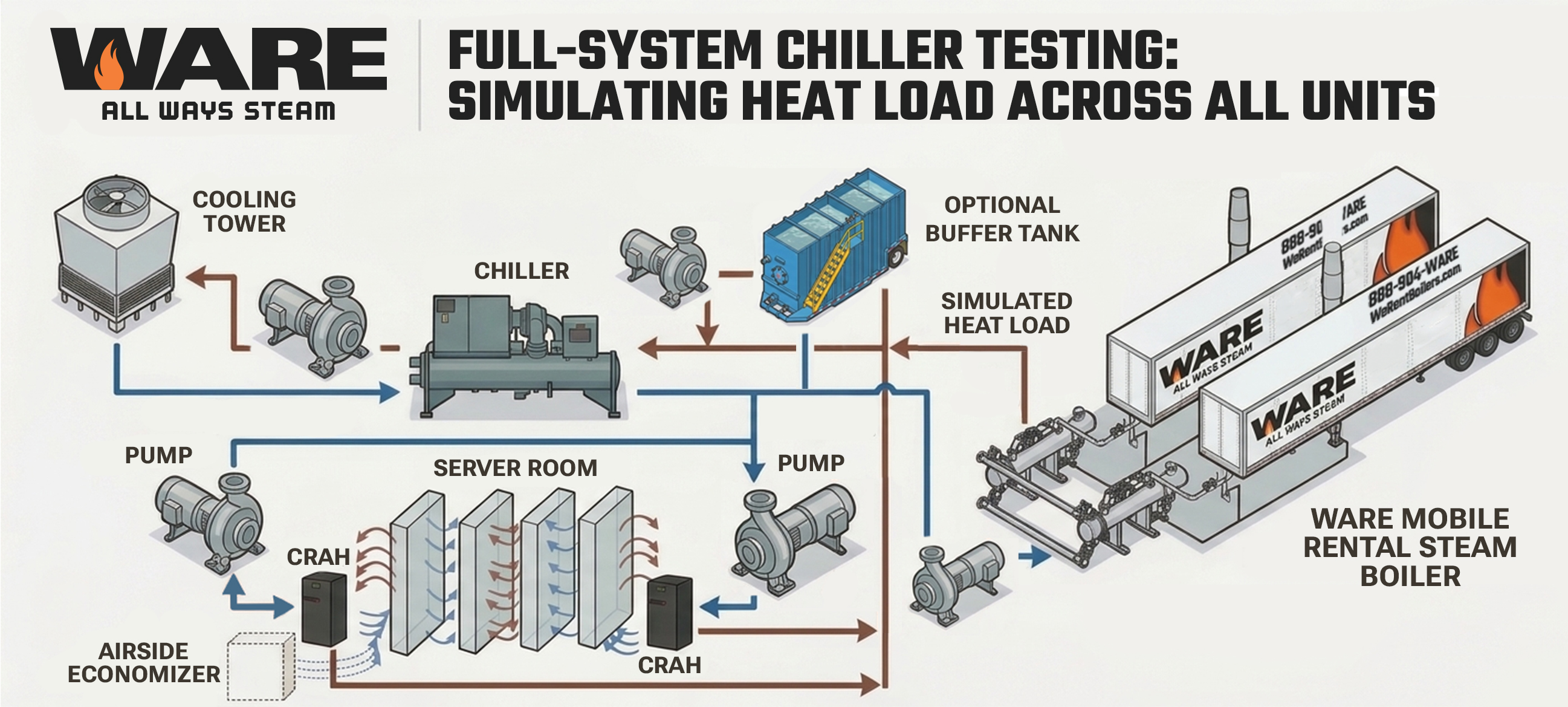

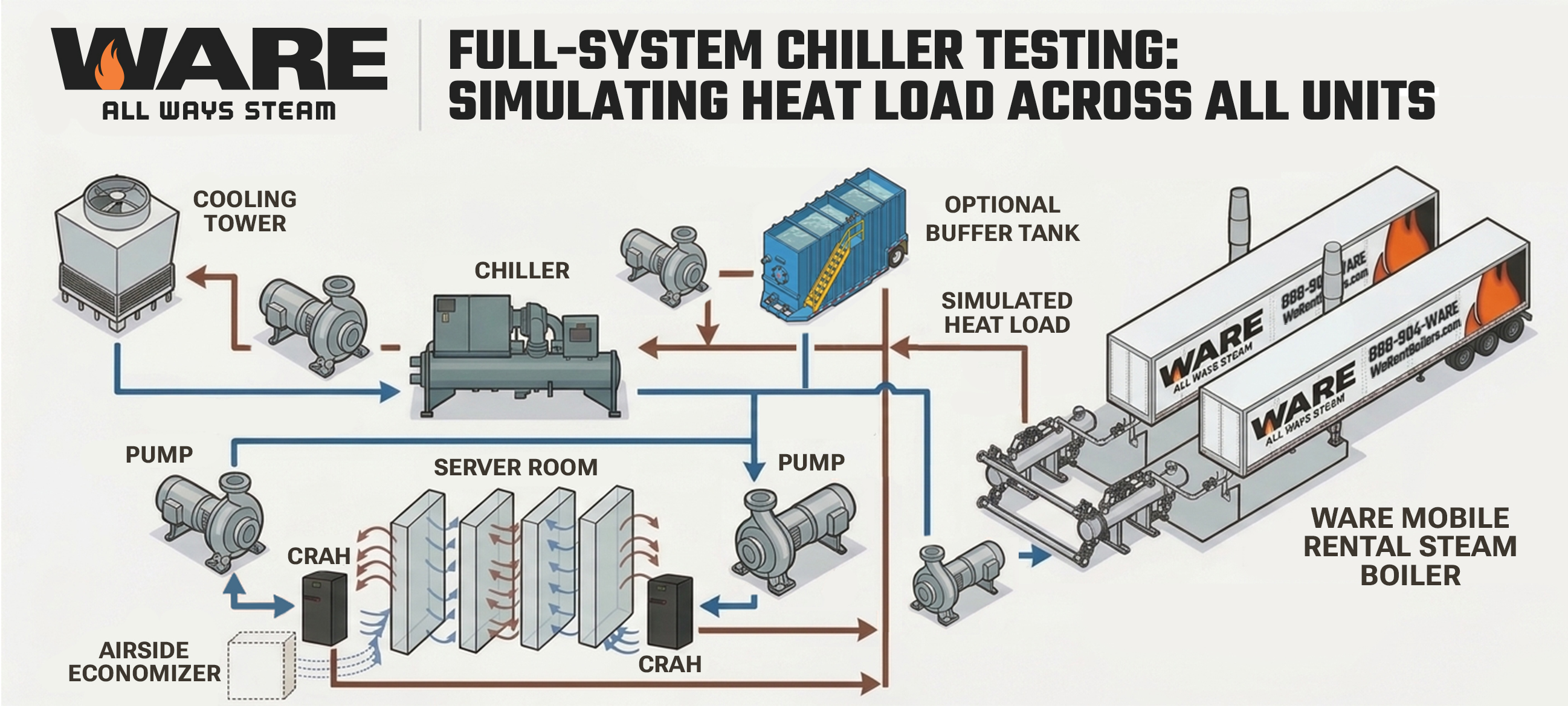

Full-System Chiller Testing

Full-system testing simulates the total heat load the cooling system will experience when the data center is operational. By testing the entire system at once, engineers can verify that the cooling infrastructure performs as expected under real-world conditions.

Many providers can test individual chillers.

Few companies have the mobile rental boiler equipment and expertise required to simulate full system heat loads at scale.

WARE does.

SIMULATING REAL-WORLD HEAT LOADS

WARE uses mobile hot water rental boilers or mobile steam rental boilers with heat exchangers to simulate the heat loads a cooling system must remove once a data center becomes operational. This allows engineers and contractors to verify that the entire chiller system performs correctly before servers and other mission-critical equipment come online.

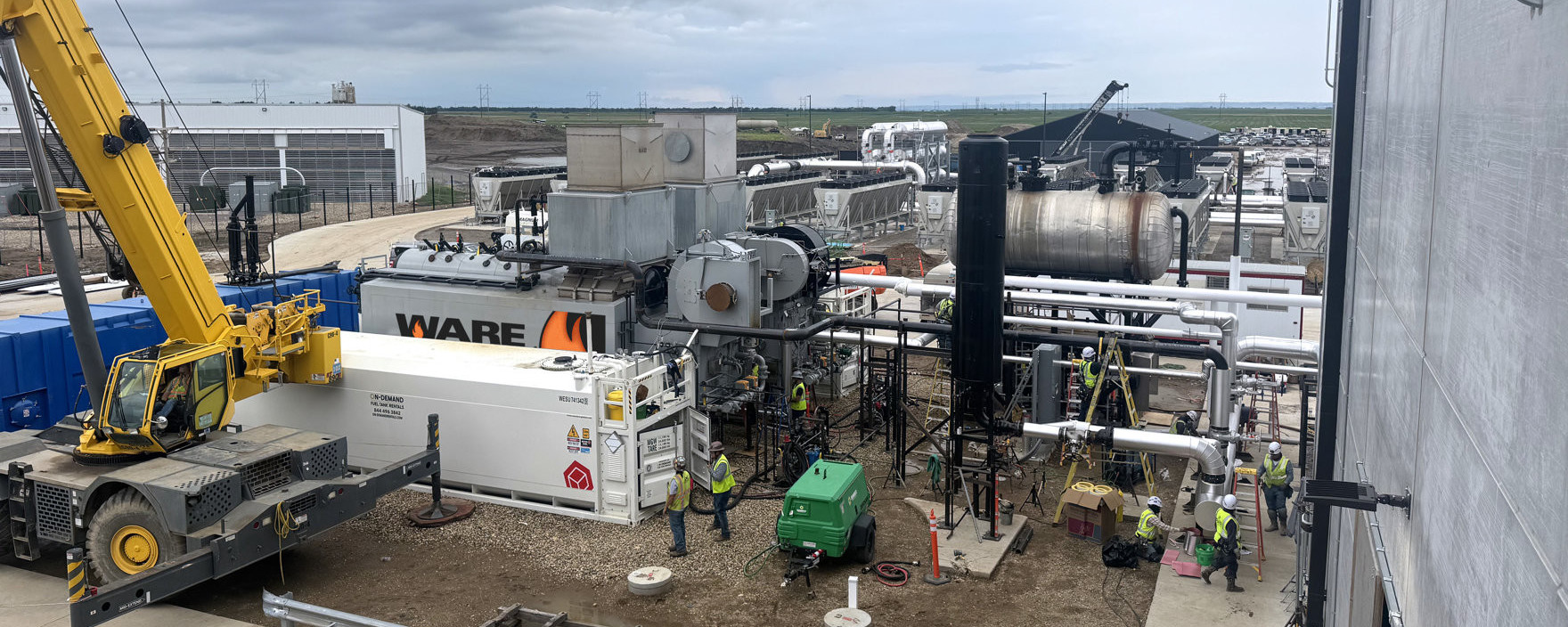

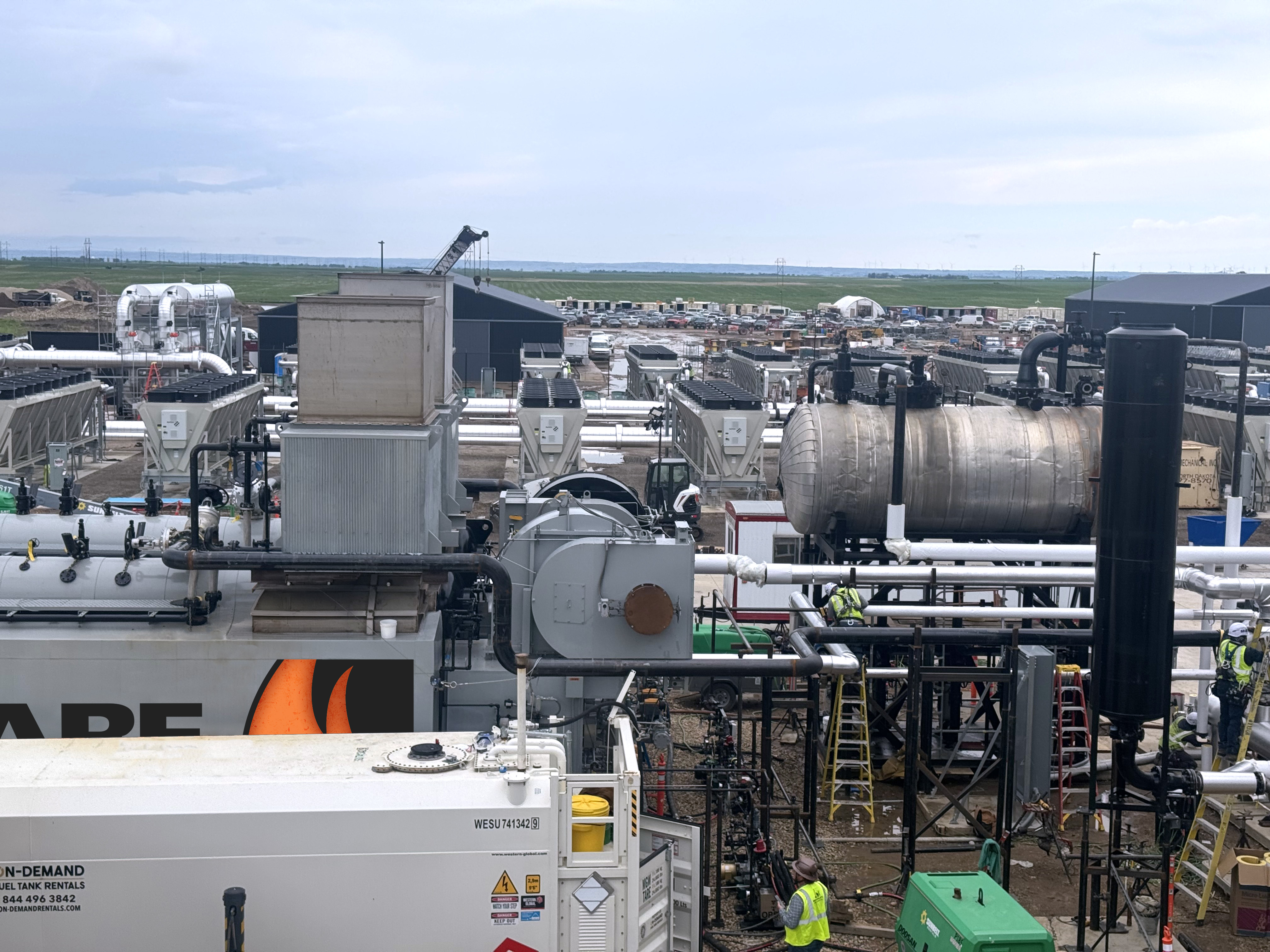

For smaller tests, hot-water boilers can simulate heat loads for individual chillers. For large-scale commissioning, WARE deploys high-capacity rental boilers connected to industrial heat exchangers to simulate the full system heat load across multiple chillers.

WARE operates one of the industry’s largest and most capable fleets of rental boiler equipment for heat load simulation and chiller testing. Our equipment supports testing scenarios ranging from individual chillers to full-system load simulations.

Capabilities include:

• Hot water boilers generating up to 400 gallons per minute for individual testing
• 10,000 gallons per minute or more for system testing
• Large rental boilers capable of supporting full-system heat load simulations
• High-capacity heat exchangers designed for large-scale commissioning
• Hot Water Equipment capable of providing up to 500,000 gallons of hot water per hour

This scale allows WARE to support complex commissioning projects where multiple chillers must be tested simultaneously.

CONTACT US FOR A QUOTE

TURNKEY TESTING SUPPORT

Data center commissioning requires tight coordination between contractors, engineers, and project teams.

WARE supports this process with turnkey chiller testing services designed to simplify execution and keep projects on schedule.

With nearly 75 years in the boiler business, our team can handle every step of the testing process, including:

• Sizing the correct rental boiler for the required heat load
• Delivering equipment to the project site
• Assisting with mechanical connections
• Designing modular systems to test banks of chillers on large sites
• Commissioning and starting the boiler system
• Operating the system throughout testing

Contractors gain a single partner responsible for executing the testing safely, efficiently, and on schedule.

SUPPORTING EQUIPMENT AND SYSTEM PROTECTION

In addition to rental boilers, WARE can provide the supporting equipment necessary to protect system performance during testing.

This includes:

• Valves
• Strainers
• Condensate Traps

CONTACT US FOR A QUOTE

HEAT TESTING IS PART OF OUR DNA

WARE’s expertise in heat load testing is strengthened by our partnership with Armstrong International, a global leader in thermal utility solutions.

Together, WARE and Armstrong support data center operators in protecting critical infrastructure and maintaining reliable thermal performance.

Learn more about Armstrong’s solutions for data centers

PLAN YOUR DATA CENTER CHILLER TESTING EARLY

The earlier chiller testing is incorporated into a commissioning plan, the easier it is to avoid delays and unexpected issues during startup.

By validating cooling performance before servers come online, contractors can move forward with confidence that the facility is ready for operation.

Put WARE’s experience, equipment, and turnkey support to work on your next data center project.

Get a Boiler Quote

FREQUENTLY ASKED QUESTIONS ABOUT DATA CENTER CHILLER TESTING

How are mobile rental boilers are used in data center chiller testing?

Data center chiller testing is the process of simulating the heat load that a cooling system must remove once a data center becomes operational. Hot water rental boilers or mobile steam rental boilers with heat exchangers are used to generate controlled heat loads so engineers and contractors can verify that the entire cooling system performs correctly before servers and other mission-critical equipment are installed.

Why is chiller testing important before a data center goes live?

Cooling systems are essential to protecting data center infrastructure. If a chiller system fails after a facility goes online, it can lead to overheating, equipment damage, and costly downtime. Chiller testing allows engineers to validate system design, installation, and performance before commissioning, reducing operational risk and helping ensure reliable cooling once the data center is operational.

What is the difference between individual chiller testing and full-system testing?

Individual chiller testing verifies that a single chiller unit operates correctly. Full-system testing simulates the total heat load that the entire cooling system must handle once the data center is running. Full-system testing provides a more accurate picture of real operating conditions because it evaluates how multiple chillers and supporting infrastructure perform together.

How does heat load simulation work?

Heat load simulation uses mobile rental boilers and heat exchangers to generate controlled heat that mimics the heat produced by data center servers and equipment. This heat is transferred into the cooling system so engineers can measure how the chillers respond under real-world operating conditions.

Can an entire data center cooling system be tested at once?

Yes. Full-system testing simulates the heat load across multiple chillers or the entire cooling system simultaneously. This type of testing requires significant equipment capacity and expertise to execute properly. Only a limited number of providers have the equipment and experience required to perform full-system testing at scale.

Why do contractors and engineers with WARE for data center chiller testing?

Contractors and engineers rely on WARE because the company provides:

• Large-scale mobile rental boiler fleets
• High-capacity heat exchangers
• Turnkey testing support
• Experienced operators and technicians
• Coordination with engineers and commissioning teams

This allows contractors to work with a single partner capable of executing complex chiller testing safely and efficiently.

READY TO PLAN YOUR DATA CENTER CHILLER TESTING?

WARE provides the mobile rental boiler equipment, experience, and turnkey support needed to simulate real operating conditions and protect mission-critical infrastructure before a facility goes live.
