No-fuss safety valve and relief valve testing.
The removal of a boiler relief valve for testing can be a time consuming job. The task involves removing the valve, lock out/tag out procedure and transporting it to the shop.Today’s technology allows for a simpler solution.
Electronic valve testing equipment enables The Valve Shop’s Boiler Valve technicians to verify the set pressure of safety and safety relief valves in-line without having to shut down a system or a unit. Only those valves that test unsuccessful are tagged for repair during a scheduled maintenance outage. This method of testing can significantly reduce downtime and costly maintenance.

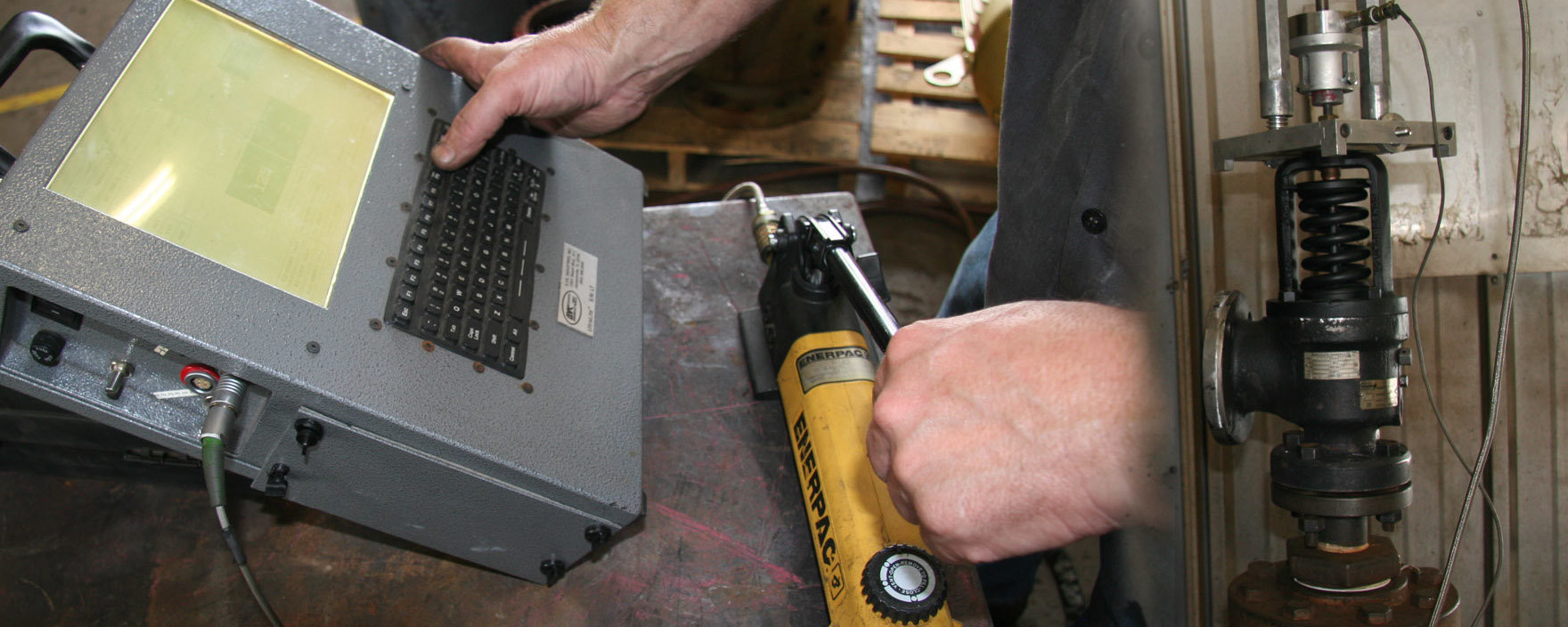

The completely portable unit consists of a laptop computer equipped with a database of valve seat effective areas and lift assist device. A combination of system pressure and controlled external force is applied to the valve's spindle to lift the valve. All data is recorded real time. Test results are available by digital and analog mediums.
Accuracy and Conformance
When used by a trained technician results are within ASME Code tolerances. This device conforms with PTC 25.3 and NB-65.
The clear advantages are:
Testing can be performed in-line during normal operation. Pre-shutdown testing can determine future needs of valves.The small portable design allows for quick set-up, operation and allows real time data collection
