As everyone knows, boilers are all about heat, and its seemingly magical power to turn ordinary water into almighty, powerful, capable steam. But that incredible heat-to-steam process requires a lot of monitoring and measuring to make sure it all happens as efficiently and safely as possible. One of the unsung heroes of heat monitoring is the humble thermocouple.
TWO WIRES ONE PURPOSE
The main purpose of a thermocouple is to provide feedback on temperature levels inside several areas of your boiler. For example, they can be used to detect the heat of a flame in the fire side, or they can be used to monitor the temperature inside the pressure vessel. They are also used for the important task of monitoring incoming and outgoing heat levels in heat exchangers and economizers to make sure they’re operating properly. You’ll even find them monitoring stack temperatures, to help gauge boiler efficiency.

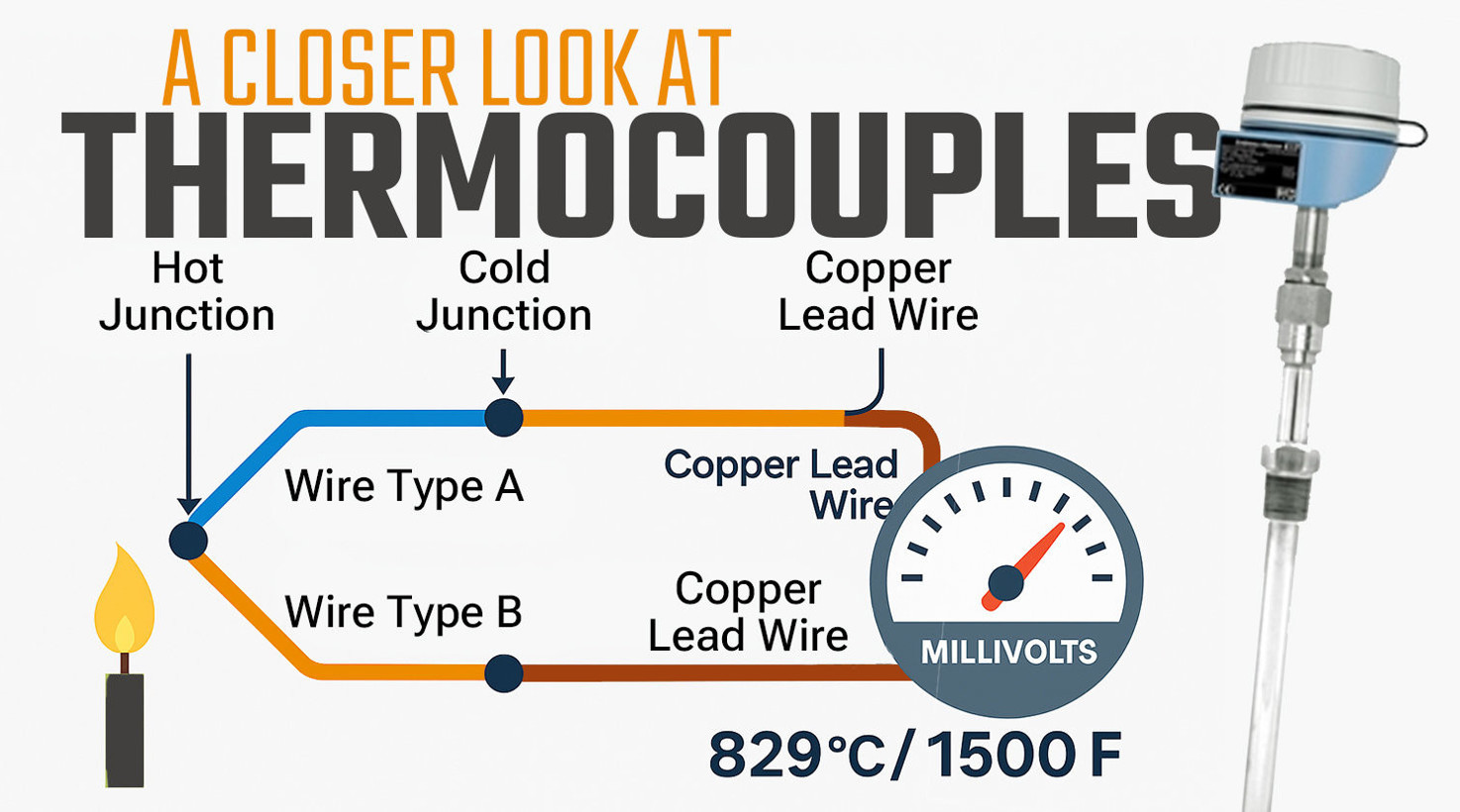

The way a thermocouple works is simple, and simply ingenious. Inside every thermocouple, there are two wires. Each wire is made of a different metal. Those two wires are joined inside the thermocouple at a point known as the “hot junction”. Now, here’s where it gets really cool. Or hot. Thanks to something known as the Seebeck Effect, when those two wires are subjected to a temperature change, they will generate a small amount of voltage.
They do this because each of the two metals react slightly differently when exposed to heat. They expand at different rates, and they each absorb energy at a different rate. So when the heat hits them, each wire’s electrons will behave a little differently. This difference is what produces the voltage.
Since that voltage can be measured, those two wires can tell a very precise story about what’s happening temperature-wise at the point they join together. Remember, the laws of physics don’t change, so those two wires in the thermocouple will always demonstrate the same behaviors when exposed to heat. Once you measure the electricity they generate under specific conditions, you can convert that electricity into data that human beings can read and understand.
In other words, if you know that a thermocouple will produce a specific voltage at a specific temperature, that thermocouple can be connected to a sensor or control system to display that temperature. It can also be connected to a loop controller as well, to provide input that helps the controller make adjustments to the boiler as it fires, to maintain maximum efficiency.
If you really want to go high-tech, you can even get thermocouple sensor assemblies with Bluetooth technology, such as the Endress + Hauser TH53 Thermocouple Assembly that translates thermocouple voltage into data. (It can also use a hard wire if you prefer not to go wireless).
Incidentally, a typical gauge thermometer also uses two different types of metal to determine temperature, but it relies on the physical distortion of two different strips of metal to move a needle, rather than two wires to generate current.
WHEN THE COUPLE BREAKS UP
When a thermocouple starts to malfunction, it may be barely noticeable at first. But when it starts to go bad, it will start to give inconsistent or inaccurate temperature readings. At that point, the thermocouple has to be replaced. So why isn’t it repaired? First of all, because thermocouples are usually inside sealed housings. Second of all, it’s because it’s just not cost effective. Since thermocouples are made with such simple construction (just two wires joined together in a housing) it’s not worth the time to disassemble them, repair or replace the wires, recalibrate the thermocouple, and reassemble it.
The housings and transmitter assemblies used with thermocouples can be reused, though. But the actual unit containing the wires is usually removed and replaced with a new one
DON’T CHANCE IT
If your thermocouple is giving you any signs of malfunction, like inconsistent readings or temperatures that don’t seem right, don’t wait for it to get worse. Get a technician to check and make sure it’s nothing simple like a faulty electrical connection due to a loose wire or some errant corrosion. The technician may also test the thermocouple connections and housing with a multimeter to make sure it’s giving the correct readings for specific temperatures.
If the technician determines that there’s nothing wrong with the connections, though, the next step is to replace the obviously malfunctioning thermocouple right away. If you don’t, your temperature readings will just get more and more inaccurate, and before you know it, you could be running your boiler at dangerously high temperatures. Nobody wants that, because that only leads to metal stress, premature failure, and shortened boiler life.
DON’T GO TO EXTREMES
Thermocouples aren’t just found in the hottest areas of your boiler. Because the Seebeck Effect works across a wide temperature range, thermocouples can also be used to measure lower-temperature parameters such as incoming air temperature, like the seitron Americas Incoming Air Temperature Probe. Because when your control system knows the temperature of your incoming air, it can adjust several other settings to make sure you’re getting the highest possible efficiency.
If you suspect you have a malfunctioning thermocouple, replace it now with one from WARE’s BoilerWarehouse.com, the country’s largest online boiler parts store. Even if your thermocouples aren’t malfunctioning, it never hurts to have a few spares on hand, either. Remember, whatever you need, from parts and supplies to service and maintenance, WARE has your back.
FAQs
Q: What is a thermocouple and how does it work in a boiler?
A: A thermocouple is a temperature sensor made of two dissimilar metal wires joined at a point called the hot junction. When heated, they generate a small voltage (Seebeck Effect) that correlates to temperature. This signal can be used by boiler control systems to monitor and adjust heat output for safety and efficiency.
Q: Where can I buy thermocouples for my boiler system?
A: You can shop thermocouples at BoilerWAREhouse, where you'll find a wide selection of Type J and Type K thermocouples, as well as advanced sensor assemblies like the Endress + Hauser TH53.
Q: What’s the difference between Type J and Type K thermocouples?
A: Type J thermocouples are ideal for lower temperature applications and offer fast response times, while Type K thermocouples are better suited for higher temperature ranges and broader industrial use. You can filter by type here to find what you need.
Q: What causes a boiler thermocouple to fail?
A: Thermocouples can degrade due to metal fatigue, corrosion, or mechanical damage. Signs of failure include erratic temperature readings or a boiler that won’t fire. When this happens, it’s best to test and replace the unit quickly to maintain safe operation.
Q: Can I replace a thermocouple myself, or should I call a technician?
A: If you’re familiar with your boiler system and have the right tools, replacing a thermocouple can be a straightforward task. However, if you're unsure, a technician can test it using a multimeter and safely install a new one from our thermocouple parts catalog.
Q: What is the Endress + Hauser TH53 Thermocouple Assembly?
A: The Endress + Hauser TH53 is a high-tech thermocouple sensor assembly that can transmit data via Bluetooth or hardwire. It’s ideal for advanced boiler monitoring systems that require real-time, remote temperature tracking and integration.
Q: How do thermocouples help improve boiler efficiency?
A: Thermocouples provide accurate temperature feedback in real time, allowing control systems to adjust fuel/air ratios, stack temperatures, and burner operation. This helps maintain efficiency and reduces energy waste.
Q: Are thermocouples only used in high-temperature areas of a boiler?
A: Not at all. While they’re essential in flame detection and heat exchangers, thermocouples are also used to monitor lower temperatures like incoming air. For example, the Seitron Americas Incoming Air Temperature Probe ensures your control system adjusts for optimal performance.
Q: What are signs that my thermocouple needs to be replaced?
A: Watch for inconsistent temperature readings, unexplained system shutdowns, or alerts from your boiler’s control system. In these cases, it’s a good idea to test and, if needed, replace the thermocouple before the issue worsens.
Q: Should I keep spare thermocouples on hand?
A: Yes. Because thermocouples are affordable, easy to replace, and essential for safe boiler operation, it’s wise to stock up on spares—especially if your system relies on specific types like Type J or Type K.
